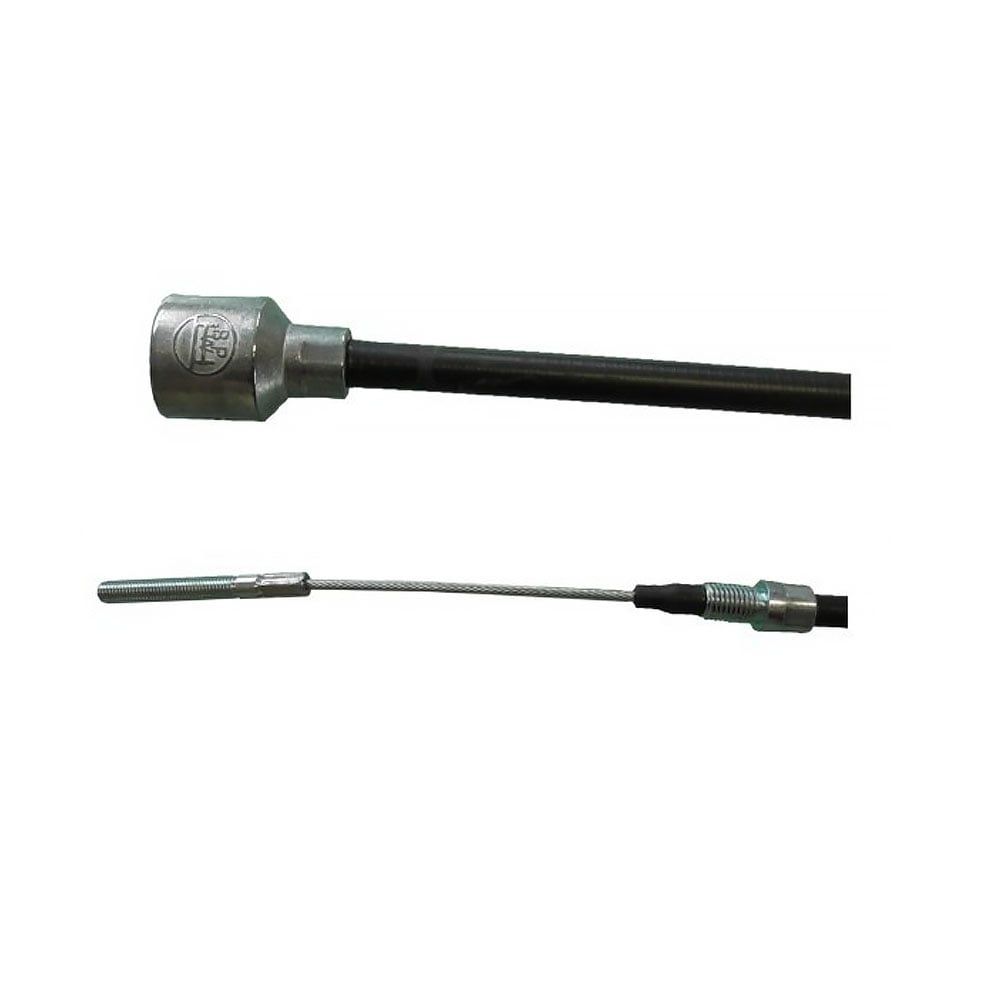

BPW Trailer Brake Cables – Detachable Type - Fits BPW Brake Drums - 23.3 Bell Housing Size
- Brake cable for BPW braking systems which links the trailer brake drum to the trailer compensator and centre brake rod.
- Fits to BPW brake drum back-plates using a detachable bell fitting over the two back-plate half-shells.
- The inner cable at the brake drum end has a nipple to hook into the brake drum expander without needing to disassemble the drum.
- The other end of the inner cable has a M8 size threaded bar to fit into the trailer compensator.
- Please note these are non-maintenance items and should be regularly checked for kinks and sticking cables.

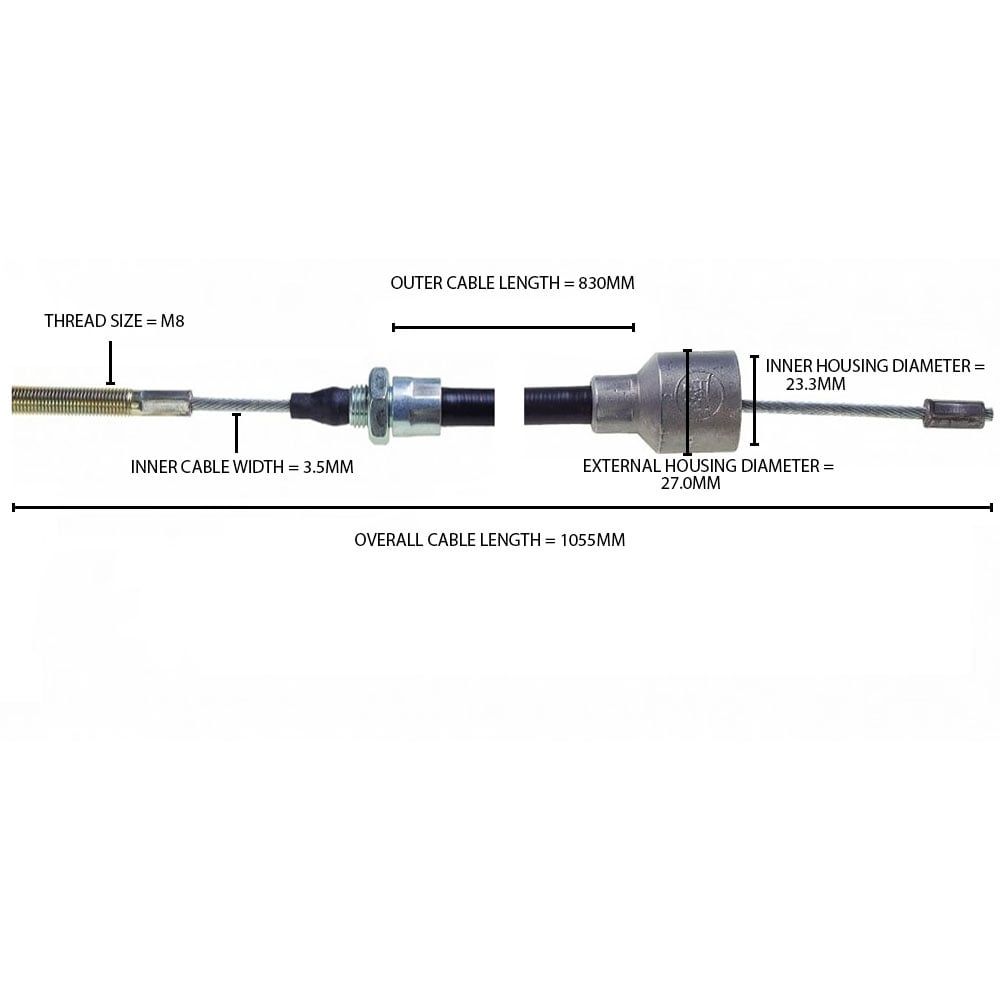

Specification
- Outer Cable (Black Cable Section) Length: 830mm – 1630mm
- Inner Cable (Metal Cable) Length: 1055mm – 1875mm
- Brake Drum Fitting: Detachable Housing (23.3mm Inner Diameter, 27.0mm Outer Diameter)
- Compensator Fitting: M8 Size Threaded Bar
- Inner Cable Size: 3.5mm
Available in the Following Sizes:
- 830mm/1055mm (05.089.33.78.0)
- 930mm/1155mm (05.089.33.80.0)
- 1030mm/1255mm (05.089.33.81.0)
- 1130mm/1355mm (05.089.33.83.0)
- 1230mm/1455mm (05.089.33.84.0)
- 1330mm/1555mm (05.089.33.85.0)
- 1430mm/1675mm (05.089.33.86.0)
- 1530mm/1755mm (05.089.33.87.0)
- 1630mm/1875mm (05.089.33.88.0)
