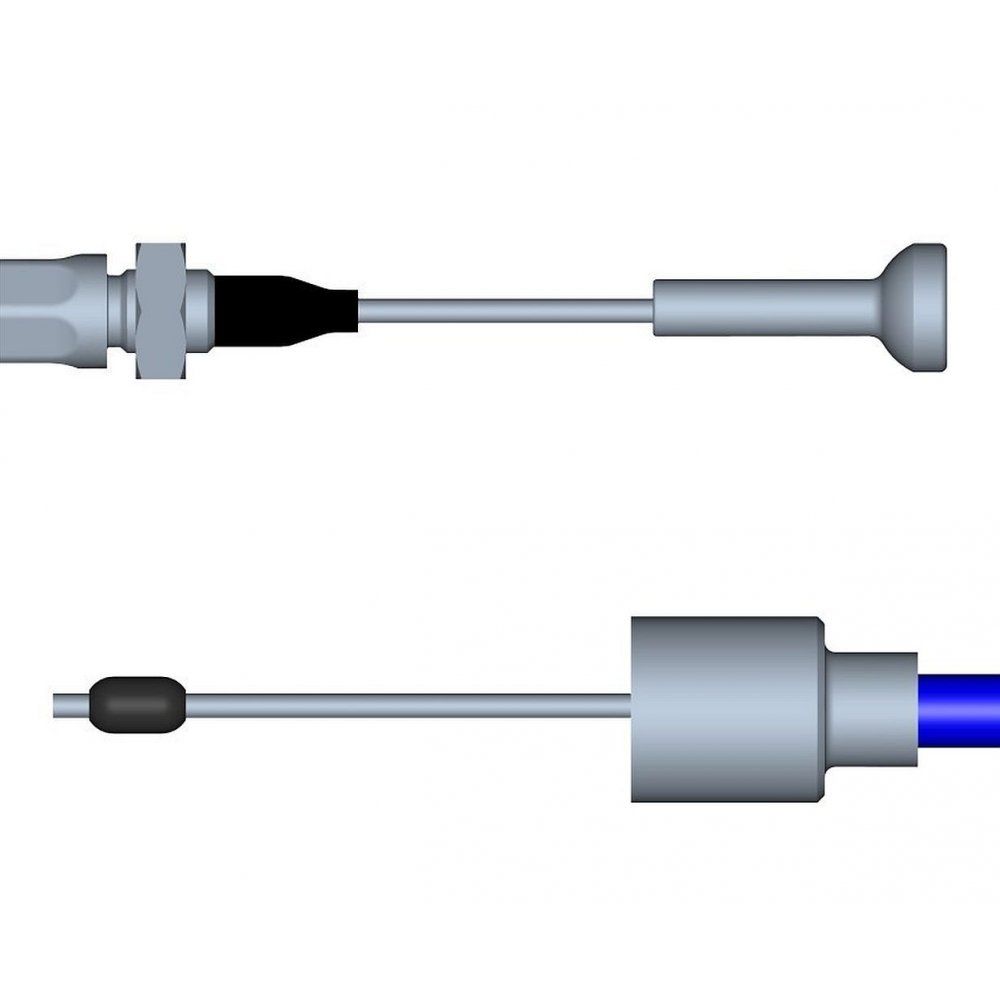

Stainless Steel Trailer Brake Cables – Detachable Type - AL-KO Pattern - Pronto Fit - 23.5mm Bell Housing Size
- Brake cable which links the trailer brake drum to the trailer compensator/central brake rod.
- Stainless Steel inner cable will outlast standard cables and are ideal for boat trailer/commercial use.
- Fits to brake drum backplate using a detachable bell fitting over the two backplate half-shells.
- The inner cable at the brake drum end has a nipple to hook into the brake drum expander.
- The other end of the inner cable has a “Pronto Fit” nipple end to fit into the modern slotted Knott compensators.
- Please note these are non-maintenance items and should be regularly checked for kinks and sticking cables.
Specification
- Outer Cable (Blue Cable Section) Length: 770mm - 1790mm
- Inner Cable (Stainless Steel Metal Cable) Length: 966mm - 1986mm
- Brake Drum Fitting: Bell Housing (23.5mm Inner Diameter, 27mm Outer Diameter)
- Compensator Fitting: “Pronto Fit” nipple end – fits to AL-KO slotted compensator
- Inner Cable Size: 3.5mm
Available in the Following Sizes:
- 770-966mm (980206.02)
- 890-1086mm (980206.03)
- 1020-1216mm (980206.04)
- 1130-1326mm (980206.05)
- 1320-1516mm (980206.06)
- 1430-1626mm (980206.07)
- 1620-1796mm (980206.08)
- 1790-1986mm (980206.09)
